Operating pressure (bar): max. 3000,

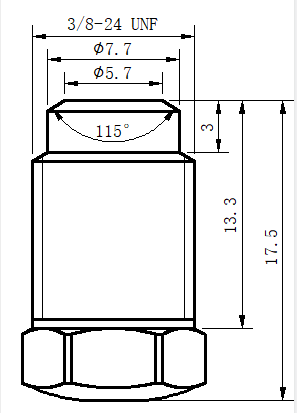

3/8-24 UNF, Sealing Edge 115°

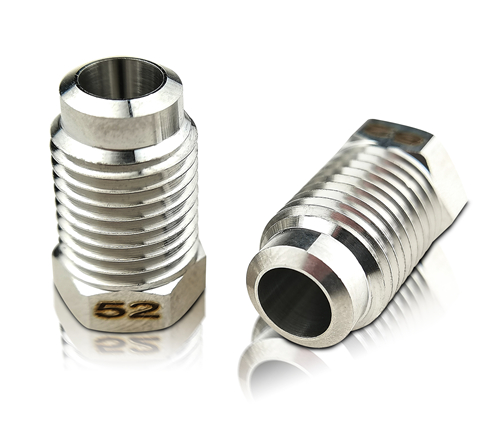

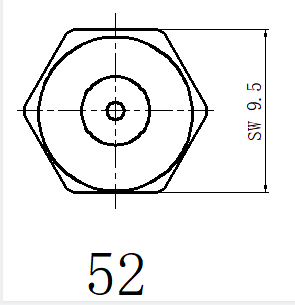

Type 52
FEATURES & BENEFITS
Equipped with premier sapphire material and aerospace grade mounting & retaining materials, The sapphire nozzle type 52 was designed to be used as a pointed nozzle for hand lances, or as an insert for rotary nozzles, or as an insert for spray-bars. The nozzle is characterized above all by its service life, efficiency and quality and can be used up to an operating pressure of 3000 bar.
Replace：3024, 3546, Type972, OS6, Flow Hornet Orifice 010084
- Long life
- High jet stream coherency
- Max jet stream length
- Superior blasting performance
Application industry
- Automobile and aircraft industry
- Construction industry
- Concrete demolition
- Mechanical and apparatus engineering
- Surface treatment
- Offshore deployment
- Cement and concrete industry
- Industrial cleaning
- Spraybars
Flow Rate Chart
