Operating pressure (bar): max. 3000,

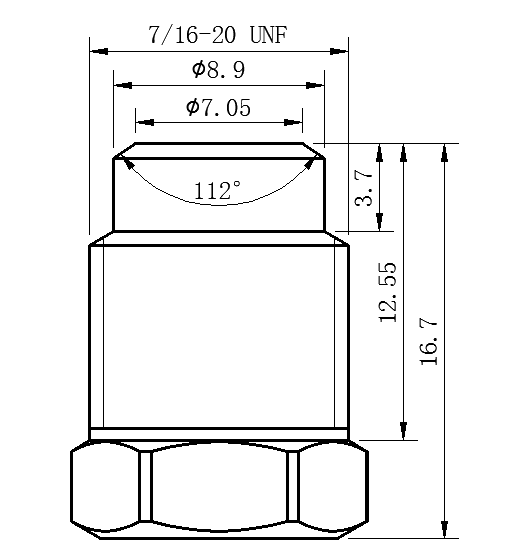

7/16-20 UNF, Sealing Edge 112°

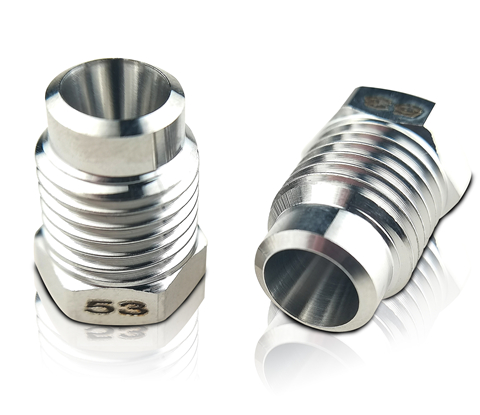

Type 53
FEATURES & BENEFITS
Equipped with premier sapphire material and aerospace grade mounting & retaining materials, The sapphire nozzle type 52 was designed to be used as a pointed nozzle for hand lances, or as an insert for rotary nozzles, or as an insert for spray-bars. The nozzle is characterized above all by its service life, efficiency and quality and can be used up to an operating pressure of 3000 bar.
Replace：3076, 3604, Type975 , OS7
- Long life
- High jet stream coherency
- Max jet stream length
- Superior blasting performance
Application industry
- Automobile and aircraft industry
- Construction industry
- Concrete demolition
- Mechanical and apparatus engineering
- Surface treatment
- Offshore deployment
- Cement and concrete industry
- Industrial cleaning
- Spraybars
Flow Rate Chart
