Operating pressure (bar): max. 3000,

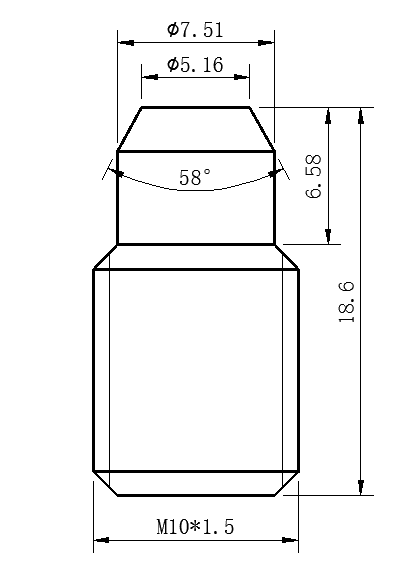

M10 x 1.5 , Sealing Edge 58°, With flow straightener

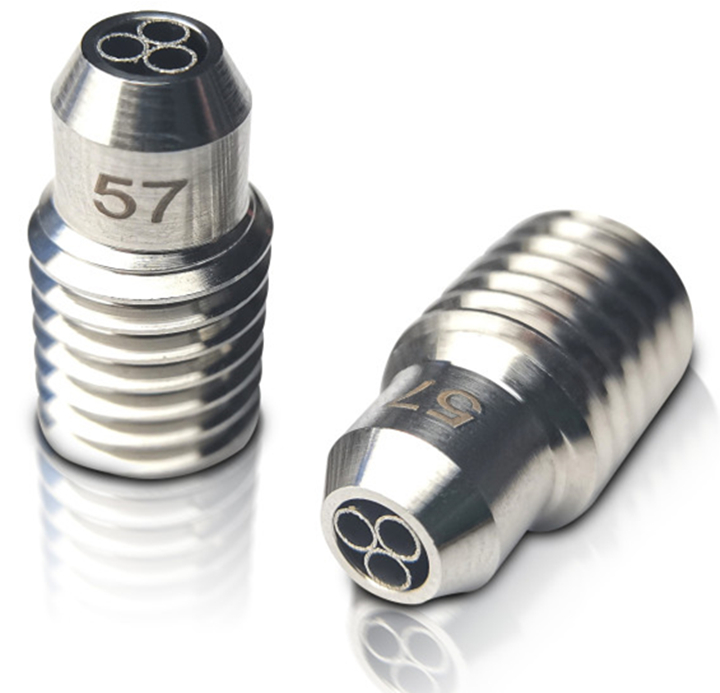

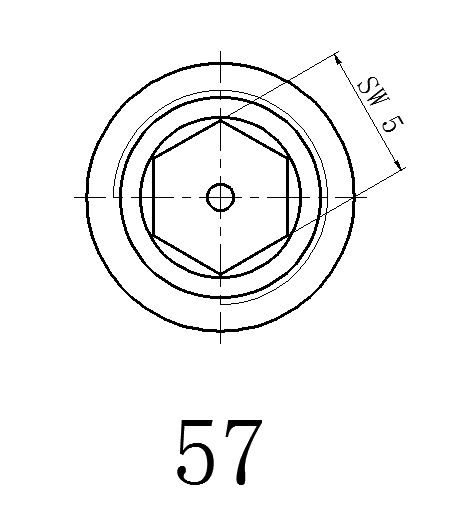

Type 57
FEATURES & BENEFITS
Equipped with premier sapphire material and aerospace grade mounting & retaining materials, The sapphire nozzle type 51 was designed to be used as a pointed nozzle for hand lances, or as an insert for rotary nozzles, or as an insert for spray-bars. The nozzle is characterized above all by its service life, efficiency and quality and can be used up to an operating pressure of 3000 bar.
Replace: 4065, 4067, 3261, Style 9, Form 21LL
- Long life
- High jet stream coherency
- Max jet stream length
- Superior blasting performance
- Needle jet with high energy density
Application industry
- Automobile and aircraft industry
- Construction industry
- Concrete demolition
- Mechanical and apparatus engineering
- Surface treatment
- Offshore deployment
- Cement and concrete industry
- Industrial cleaning
- Spraybars
Flow Rate Chart
