Operating pressure (bar): max. 3000,

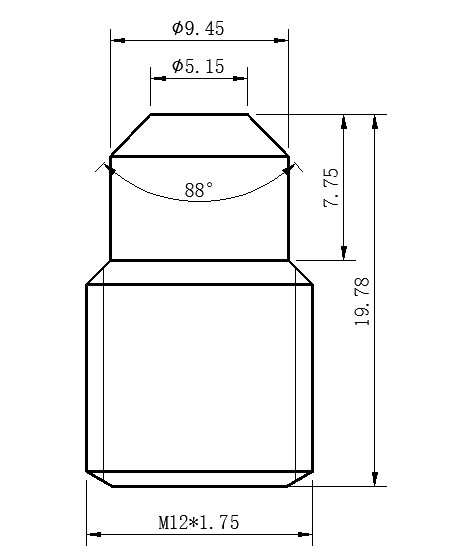

M12 x 1.75 , Sealing Edge 88°

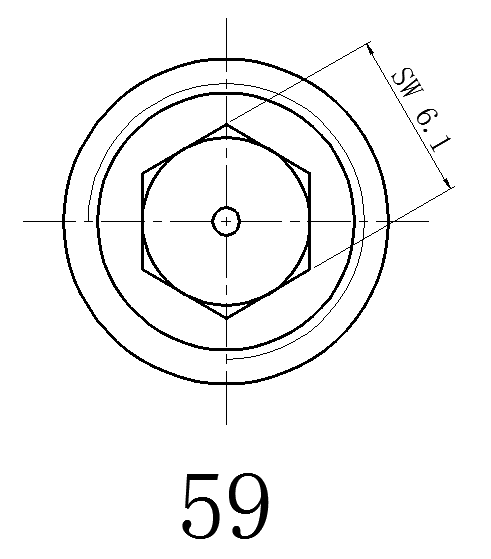

Type 59
FEATURES & BENEFITS

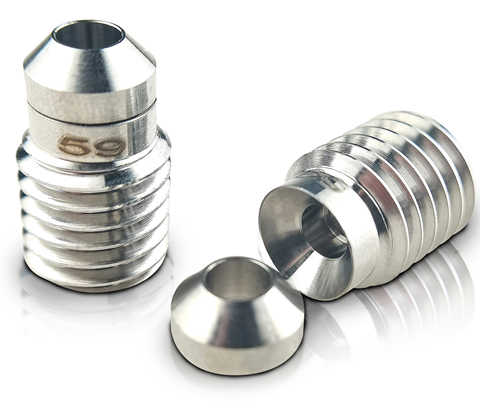

Equipped with premier sapphire material and aerospace grade mounting & retaining materials, The sapphire nozzle type 59 was designed to be used as a pointed nozzle for hand lances, or as an insert for rotary nozzles, or as an insert for spray-bars. The nozzle is characterized above all by its service life, efficiency and quality and can be used up to an operating pressure of 3000 bar.
Replace: Type 161
- Long life
- High jet stream coherency
- Max jet stream length
- Superior blasting performance
Application industry
- Automobile and aircraft industry
- Construction industry
- Mining
- Chemical industry
- Iron, steel and metal industries
- Energy industry
- Glass, porcelain and ceramic industries.
- Lumber industry
- Municipal operations
- Mechanical and apparatus engineering
- Reinforced concrete
Flow Rate Chart
