Operating pressure (bar): max. 3000,

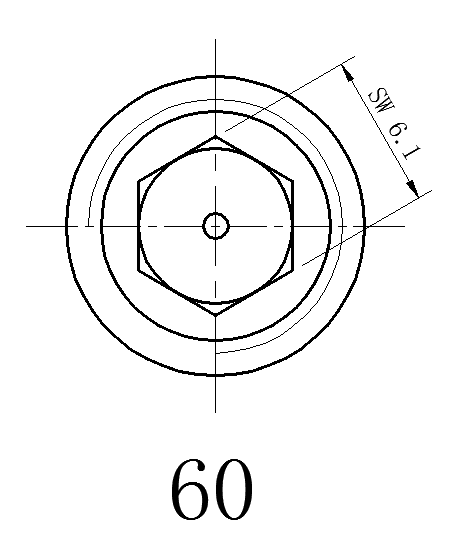

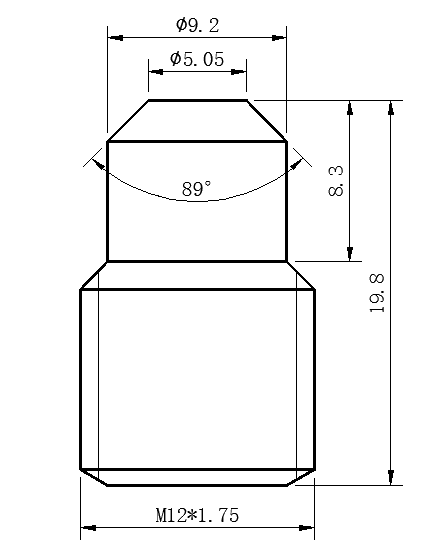

M12 x 1.75 , Sealing Edge 88°
Type 60
FEATURES & BENEFITS

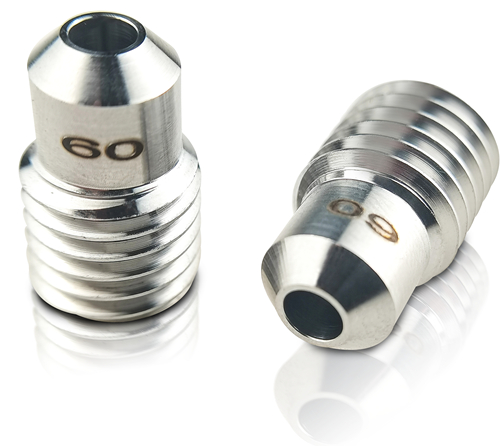

Equipped with premier sapphire material and aerospace grade mounting & retaining materials, The sapphire nozzle type 60 was designed to be used as a pointed nozzle for hand lances, or as an insert for rotary nozzles, or as an insert for spray-bars. The nozzle is characterized above all by its service life, efficiency and quality and can be used up to an operating pressure of 3000 bar.
Replace: Type 123
- Long life
- High jet stream coherency
- Max jet stream length
- Superior blasting performance
Application industry
- Construction industry
- Mining
- Iron, steel and metal industries
- Mechanical and apparatus engineering
- Surface treatment
- Removal of bitumen layers
- Concrete demolition
- Cement and concrete industry
- Industrial cleaning
Flow Rate Chart
